Luqeeg 30A RV Power Inlet Outlet Shore Kit, PVC Casing Power Plug Kit, High Temperature Proof & Retardant with Male & Female Connector Locking Plug for Trailer Ship Caravan

Specification: Item Type: RV Power Inlet Outlet Shore Kit Material: PVC, Brass Rated Current: 30A Plug Specification: NEMA L5-30R Socket Specification: NEMA L5-30P Wiring Color Code: 1. 125V 3 Wire System: Black: Live wire; White: Neutral wire; Green: Equipment ground wire 2. 125/250V 4 Wire System: Black: Live wire (125V); Red: Live wire (125V); White: Neutral wire; Green: Equipment ground wire 3. Insert the wire into the terminal hole, tighten the terminal screw to a torsion of 20in-lb, and ensure that there is no insulation remains. Wiring: Thread the internal wiring through the box opening, use at least 10 AWG/3c wires, do not use finer wires to prevent overheating and potential electrical fires. Stripping and Connecting: Peel off 3/5in on the end of the wire to ensure it is clean and non corrosive. Insert the wire into the opening behind the air inlet according to the color code and tighten the terminal screw. Organizing and Fixing: Thread the wires through the rear baffle and pressure reducing device, slide the rear baffle behind the air inlet, tighten the pressure reducing screw, place the air inlet above the box opening, align the mounting holes, and use screws to fix the air inlet to the box. Adjustment Steps: 1. Power Outage: Cut off the power at the entrance of the circuit breaker. 2. Dismantling Old Inlet: Remove the old air inlet from the housing and disconnect the internal wiring. 3. Check for Erosion: Check for erosion in the wiring. If there is, cut off the corrosive part and re strip the wire. packing list: 1 x NEMA L5-30R Plug 1 x Plug Protective Cover 1 x User Manual 1 x NEMA L5-30P Socket 1 x Socket Manual

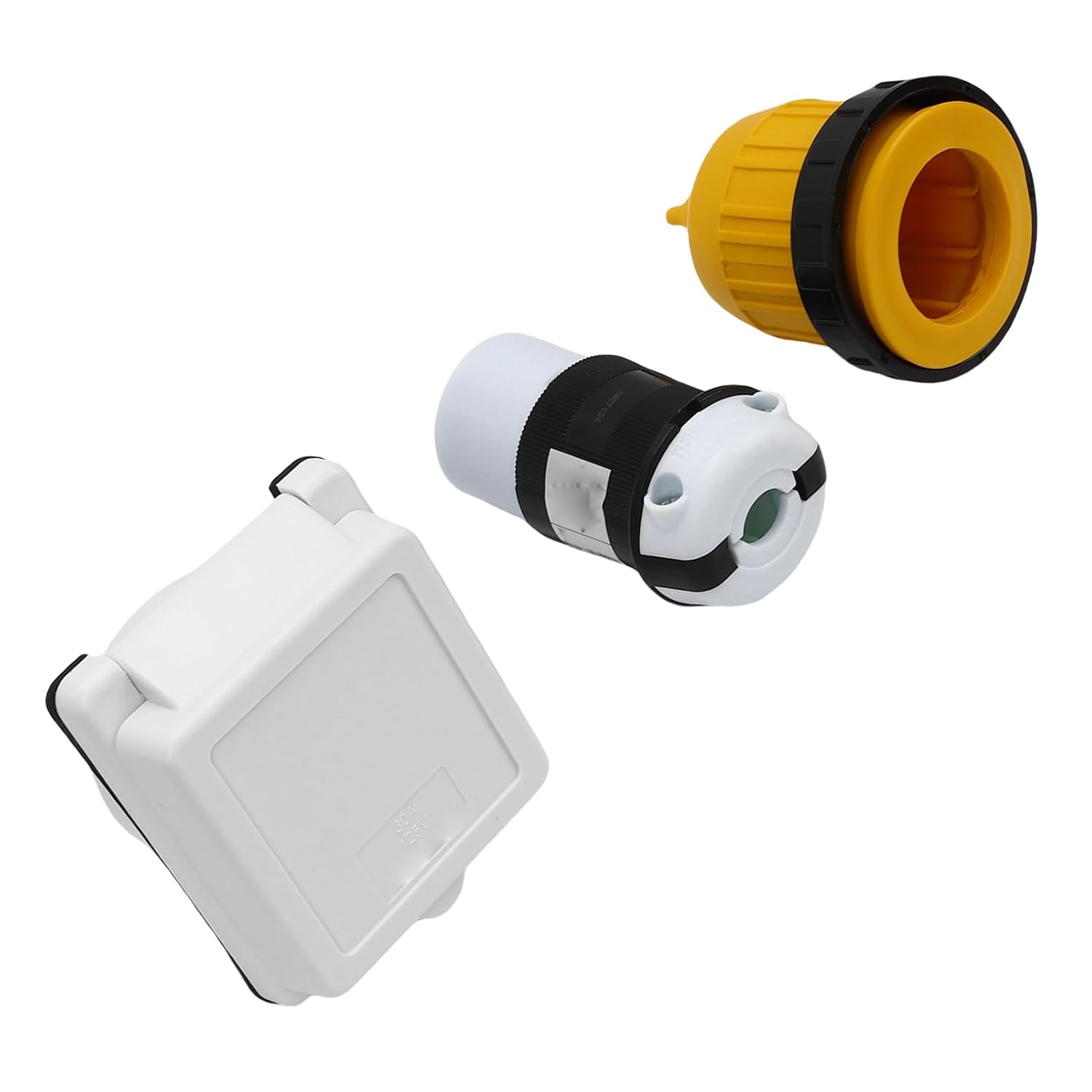

• RV Power Plug Kit: The kit includes NEMA L5-30P male connector, NEMA L5-30R female connector, and power cord protective cover with locking .
• Versatile Use: This power inlet outlet shore kit features rated current of 30A, can be widely used in RVs, trailers, ships, caravans, and van.
• PVC : The locking plug and connector set adopts heavy duty PVC material, which is high temperature proof and retardant, ensuring safety.

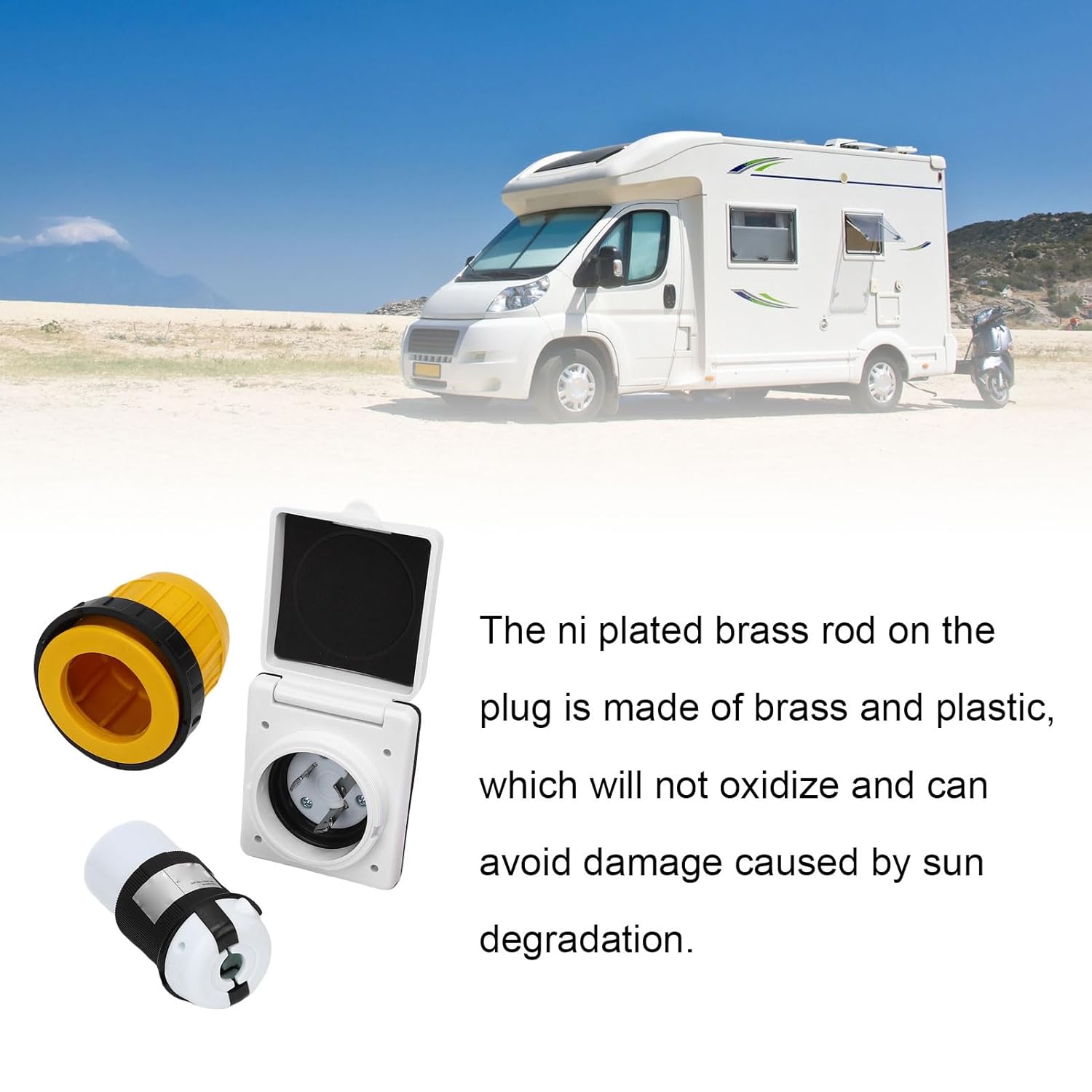

• Long Lasting: The ni plated brass rod on the plug is made of brass and plastic, which will not oxidize and can avoid damage caused by sun degradation.
• Easy to Install: The color terminals make installation more convenient, the green terminal is for ground wire, black terminal is for live wire, and the white terminal is for neutral wire. Compatible with 10-8AWG wires.
